EOLO PDA mod. ESET

Resistance characteristics to adverse conditions:

• IP67 (1m of diving)
• MIL-STD-810F, method 506.3, procedure I
• Multiple shock resistance CEI-68-2-32 (1m on cement) and MIL-STD-810F method 516.5 procedure IV (1.2 on wood)
• Operating temperature from -20 ° C to +50 ° C

The hardware platform on which EOLO PDA is made are the high-end hand-held devices produced by DAP Technologies (here we could insert a link to our own page where we refer to these handhelds?).

In the EOLO PDA model, the handheld harnesses data acquisition functions (thanks to DAQ PCMCIA or CF cards and serial / ethernet communication ports) and setup / monitoring.

Also in this model, the high modularity of the hardware is evident from the following features:

• 16/32 analog input channels, 2 analog output channels, 8 digital lines
• up to 5 serial ports, 1 infrared IRDA port
• 1 Ethernet 10 Mbps port
• possibility of two CAN ports and interfaces for K line
• GPS / DGPS
• Housing for 2 PCMCIA Type II or 1 PCMCIA Type III
• Real-time wireless telemetry: GSM / GPRS or WiFi

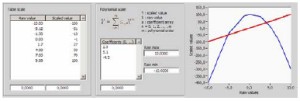

The characteristics of the management software are the versatility, the possibility of remote control and visualization, and of course the opening towards third-party communication and datalogger standards:

• Microsoft Windows CE .NET 4.2 operating system

• Local user interface on PDA for

• Test setup

• Acquisition / trigger mode setting

• Numerical and graphical monitoring in real time

• Remote control and display via TCP / IP (Ethernet or wireless)

• Transfer files via ftp server or Active Sync

• Generation of real-time signals for third-party dataloggers

• Simultaneous acquisition from sensors, CAN bus, K line

• Opening to the following software interfaces:

• ASAP 3

• ASAP 2

• KWP 2000

• McMess
